Aquaculture Measurement Greenhouse Small Instrument Waterproof ABS Rubber Shell Probe 10K 3435NTC Temperature Sensor
Product application scope
Widely used in: home appliances (wall-mounted boilers, constant temperature water heaters, air conditioners, electric pressure cookers, microwave ovens, disinfection cabinets, refrigerators, electromagnetic
Stoves, soymilk machines, water dispensers, electric ovens, deep fryers, etc.) and automobiles (cars, diesel engines, buses, etc.) and temperature detection instruments,
Medical equipment, food processing and granary temperature measurement and other fields.
Can be customized and processed according to customer requirements
[Customization instructions]
1. Resistor resistance (requirement for nominal resistor resistance at 25°C)
2. Resistor accuracy (1% to 5%)
3. B value coefficient of resistor
4. Wire model length
5. Wire tail specifications (tin-immersed, with plug, special specifications)
6. Head appearance size
7. Measure the ambient temperature
Product Details

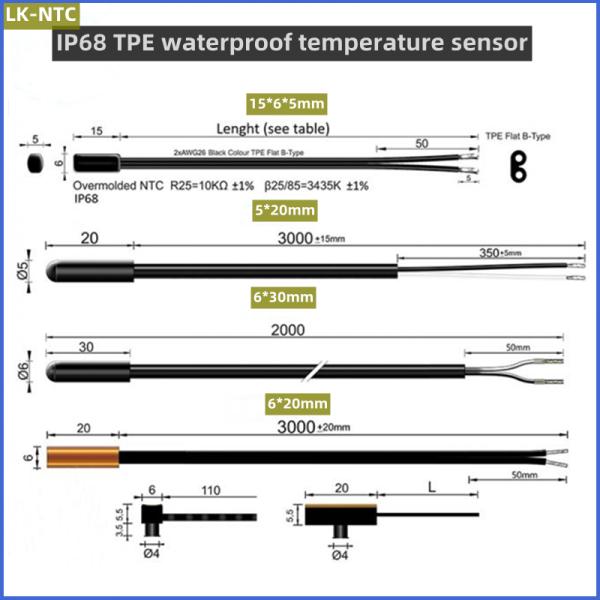

1. Dimensions
| Appearance specifications | | | |
| serial number | Material name | Specifications/Models | quantity | |
| L1 | thermistor | MF52A-10K 34351% (special parameters can be customized) | 1pcs | |
| L2 | shell | ABS plastic head black/white | 1pcs | |
| L3 | Permanent fee | NC-101 : NL-1=1:1 | | |
| L4 | Wire | 28#2464 Sheathed wire black/white | 1pcs | |
| Electrical properties | | | | | | |
| Serial number | Project | Symbol | Test Conditions | Minimum value | Normal value | Maximum value | Unit |
| 1 | Resistancevalue at 25°C | R25 | Ta=25±0.05°CPt≤0.1 mw | 9.9 | 10 | 10.1 | KΩ |
| 2 | Resistancevalue at 50℃ | R50 | Ta=50±0.05°CPt≤0.1 mw | / | 4.1218 | / | KΩ |
| 3 | B value | B:25/50 |  | 3400.65 | 3435 | 3469.35 | KΩ |
| 4 | Dissipation coefficient | p | Ta=25±0.5°C | 5 | / | / | mw/℃ |
| 5 | time constant | t | Ta=25±0.5°C | / | / | 15 | sec |
| 6 | Insulation resistance | / | 500Vdc | 100 | / | / | |
| 7 | Pressure test | / | 2000V AC I=0.5mA | 60 | / | / | s |
| 8 | Operating temperature range | / | | -40 | / | 300 | ℃ |
| | | | | | | | | | | |
